| CX-A |
|
Check Cartridge(Free Flow Port1 To Port2)
浮動型-單向閥(正流向)
Model code
產品型號 |
Cavity
閥孔型號 |
Capacity
流量 |
Cartridge
Dimensions
外型尺寸 |
Max.
pressure
最高壓力 |
Max.flow
安裝扭距 |
Operating termperature
溫度範圍 |
KG
重量 |
| |
|
Litres/min |
a |
(bar) |
(Nm) |
|
(lbs) |
| CX2A |
T13A |
80L/min |
19 |
350 |
40/50 |
-35~100゜C
(131~212゜F) |
0.12
(0.26) |
| CX3A |
T5A |
160L/min |
18 |
350 |
60/70 |
-35~100゜C
(-31~212゜F) |
0.18
(0.4) |
| CX6A |
T16A |
320L/min |
25 |
350 |
200/215 |
-35~100゜C
(-31~212゜F) |
0.42
(0.92) |
| CX8A |
T18A |
640L/min |
31 |
350 |
465/500 |
-35~100゜C
(-31~212゜F) |
0.93
(2.05) |
Ordering Code
| CX |
-2A |
-T13A |
-X |
-C |
-N |
| 1 |
2 |
3 |
4 |
5 |
6 |
| 1 |
CX |
Model Code
插式單向閥(正流向) |
|
| 2 |
2 |
Specifcation
規格 |
2,3,6,8 |
| 3 |
T13A |
Cavity
閥孔型號 |
T13A,T5A,T16A,T18A |
| 4 |
X |
Controls
控制方式 |
X:Non Adjustable
X:不可調 |
| 5 |
C |
Adjustment Ronges
調整範圍 |
A:0.3bar
B:1.0bar
C:2.0bar
D:3.5bar
E:5.0bar |
| 6 |
N |
Seals
油封材質 |
N:Buna-N
V:Viton |

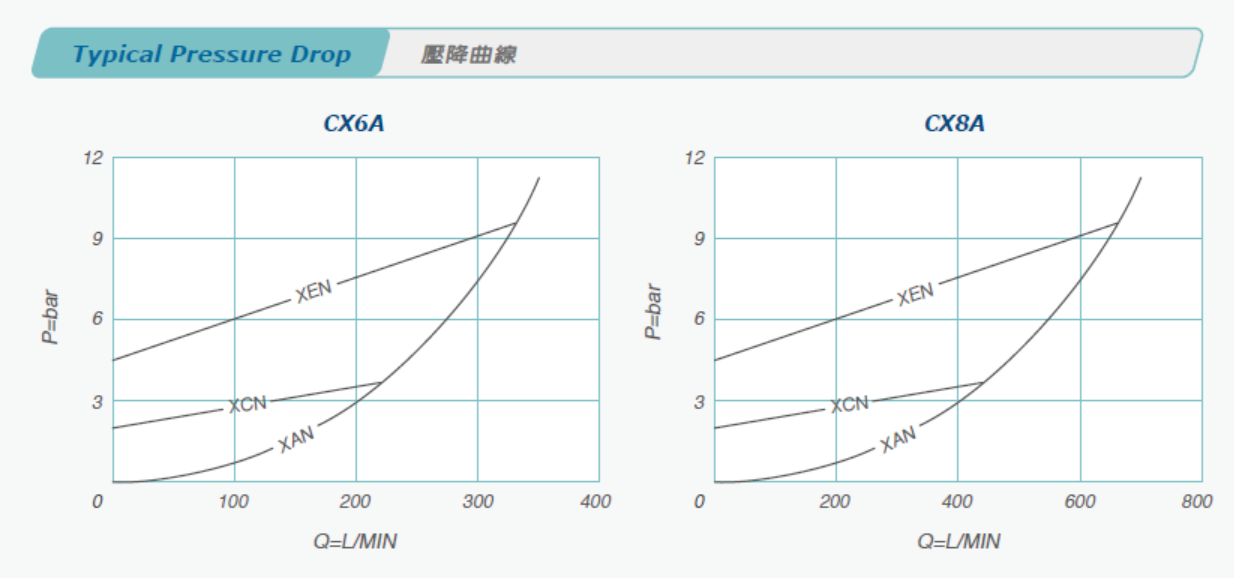

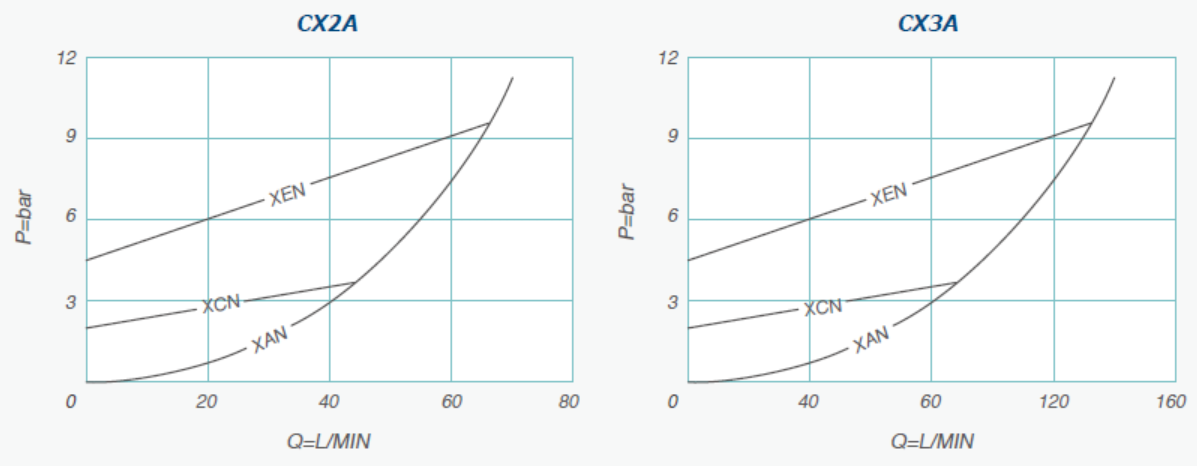

Typical Pressure Rise
| Dimension & Cavities Tooling |
|
| |
| |
|
|
|
