| RD-A |
|
Pilot Action Relief Cartridge
浮動型-插式溢流閥(直動型)
Model code
產品型號 |
Cavity
閥孔型號 |
Capacity
流量 |
Cartridge
Dimensions
外型尺寸 |
Max.
pressure
最高壓力 |
Max.flow
安裝扭距 |
Operating termperature
溫度範圍 |
KG
重量 |
| |
|
Litres/min |
a |
(bar) |
(Nm) |
|
(lbs) |
| |
|
|
L |
|
|
|
|
| RD2A |
T10A |
95L/min |
61 |
350 |
40/50 |
-35~100゜C
(131~212゜F) |
0.15
(0.34) |
| RD3A |
T3A |
200L/min |
64 |
350 |
60/70 |
-35~100゜C
(-31~212゜F) |
0.295
(0.65) |
| RD6A |
T16A |
380L/min |
83 |
350 |
200/215 |
-35~100゜C
(-31~212゜F) |
0.67
(1.46) |
| RD8A |
T18A |
760L/min |
100 |
350 |
465/500 |
-35~100゜C
(-31~212゜F) |
1.45
(3.16) |
Ordering Code
| RD |
-2A |
-T10A |
-L |
-A |
-N |
| 1 |
2 |
3 |
4 |
5 |
6 |
| 1 |
RD |
Model Code
插式直動型溢流閥 |
|
| 2 |
2 |
Specifcation
規格 |
2,3,6,8 |
| 3 |
T10A |
Cavity
閥孔型號 |
T10A,T3A,T16A,T18A |
| 4 |
L |
Controls
控制方式 |
L:Standard Screw Adjustment
L:標準螺絲調整 |
| 5 |
A |
Adjustment Ronges
調整範圍 |
A:35~210bar
B:20~105bar
C:10~315bar
E:7~25bar |
| 6 |
N |
Seals
油封材質 |
N:Buna-N
V:Viton |

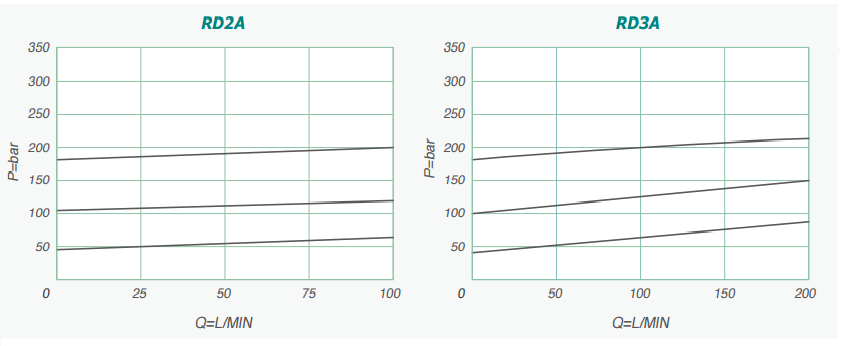

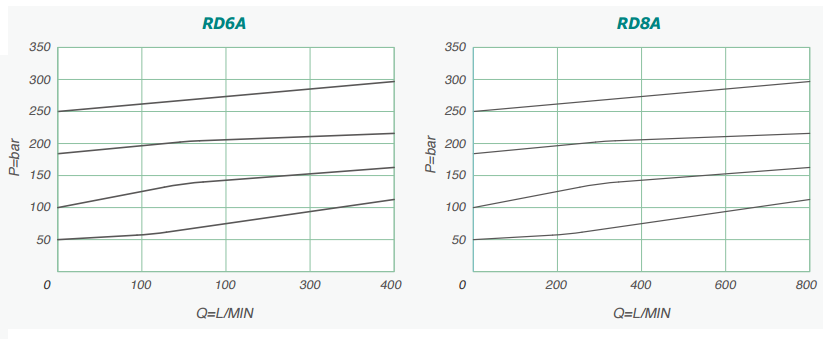

Typical Pressure Rise
| Dimension & Cavities Tooling |
|
| |
| |
|
|
|
