| PB-B |
|
Pilot Operated Reducing Cartridge
浮動型-插式減壓閥(導壓操作平衡活塞型)
Model code
產品型號 |
Cavity
閥孔型號 |
Capacity
流量 |
Cartridge Dimensions
外型尺寸 |
Max.
pressure
最高壓力 |
Max.flow
安裝扭距 |
Operating termperature
溫度範圍 |
KG
重量 |
| |
|
Litres/min |
a |
(bar) |
(Nm) |
|
(lbs) |
| |
|
|
L |
K |
|
|
|
|
| PB2B |
T11A |
40L/min |
64 |
70 |
350 |
40/50 |
-35~100゜C
(-31~212゜F) |
0.17
(0.37) |
| PB3B |
T2A |
80L/min |
72 |
78 |
350 |
60/70 |
-35~100゜C
(-31~212゜F) |
0.30
(2.18) |
| PB6B |
T17A |
160L/min |
84 |
90 |
350 |
200/215 |
-35~100゜C
(-31~212゜F) |
0.64
(1.47) |
| PB8B |
T19A |
320L/min |
100 |
107 |
350 |
465/500 |
-35~100゜C
(-31~212゜F) |
1.43
(3.158 |
Ordering Code
| PB |
-2B |
T11A |
-L |
-A |
-N |
| 1 |
2 |
3 |
4 |
5 |
6 |
| 1 |
PB |
Model Code
插式平衡式減壓閥 |
|
| 2 |
2 |
Specifcation
規格 |
2,3,6,8 |
| 3 |
T11A |
Cavity
閥孔型號 |
T11A,T2A,T17A,T19A |
| 4 |
L |
Controls
控制方式 |
L:Standard Screw Adjustment
L:標準螺絲調整
K:Handknob with Lock knob
K:調鈕調整 |
| 5 |
A |
Adjustment Ronges
調整範圍 |
A:7~210bar
B:3.5~105bar
C:4~55bar
E:10~315bar |
| 6 |
N |
Seals
油封材質 |
N:Buna-N
V:Viton |

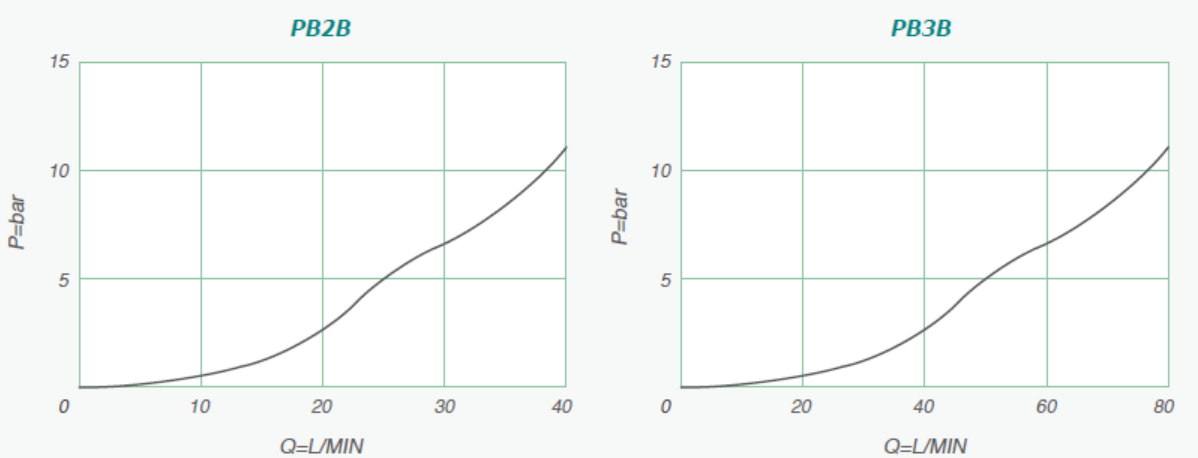

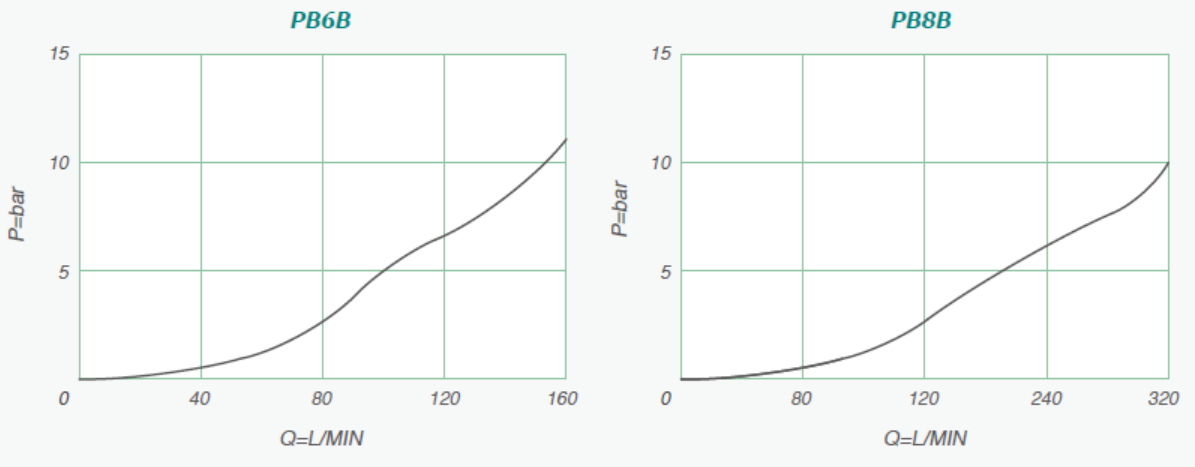

Typical Pressure Rise
| Dimension & Cavities Tooling |
|
| |
| |
|
|
|
