| CB-H |
|
Counterbalance Cartridge
浮動型-插式抗衡閥(標準型)
Model code
產品型號 |
Cavity
閥孔型號 |
Capacity
流量 |
Cartridge
Dimensions
外型尺寸 |
Max.
pressure
最高壓力 |
Max.flow
安裝扭距 |
Operating termperature
溫度範圍 |
KG
重量 |
| |
|
litres/min |
a |
(bar) |
(Nm) |
|
(lbs) |
| |
|
|
L |
|
|
|
|
| CB2H |
T11A |
60L/min |
50 |
350 |
40/50 |
-35~100゜C
(131~212゜F) |
0.17
(0.37) |
| CB3H |
T2A |
120L/min |
61 |
350 |
60/70 |
-35~100゜C
(-31~212゜F) |
0.30
(0.66) |
| CB6H |
T17A |
240L/min |
70 |
350 |
200/215 |
-35~100゜C
(-31~212゜F) |
0.64
(1.41) |
| CB8H |
T19A |
480L/min |
90 |
350 |
465/500 |
-35~100゜C
(-31~212゜F) |
1.47
(3.23) |
Ordering Code
| CB |
-2 |
-H |
-T11A |
-L |
-J |
-N |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
| 1 |
CB |
Model Code
插式抗衡閥 |
|
| 2 |
2 |
Specifcation
規格 |
2,3,6,8 |
| 3 |
H |
Pilot Ratio
導壓比 |
H: 10:1 |
| 4 |
T11A
|
Cavity
閥孔型號
|
T11A,T2A,T17A,T18A
|
| 5 |
L |
Controls
控制方式 |
L:Standard Screw Adjustment
L:標準螺絲調整 |
| 6 |
J |
Adjustment Ronges
調整範圍 |
J:140~350bar
K:70~175bar
C:140~350bar
D:70~175bar
止回彈簧壓力:Cracking Pressure J&K:1.7bar,C&D:0.3bar
出場設定壓力:Standard Set J&C:210bar,K&D:140bar |
| 7 |
N |
Seals
油封材質 |
N:Buna-N
V:Viton |

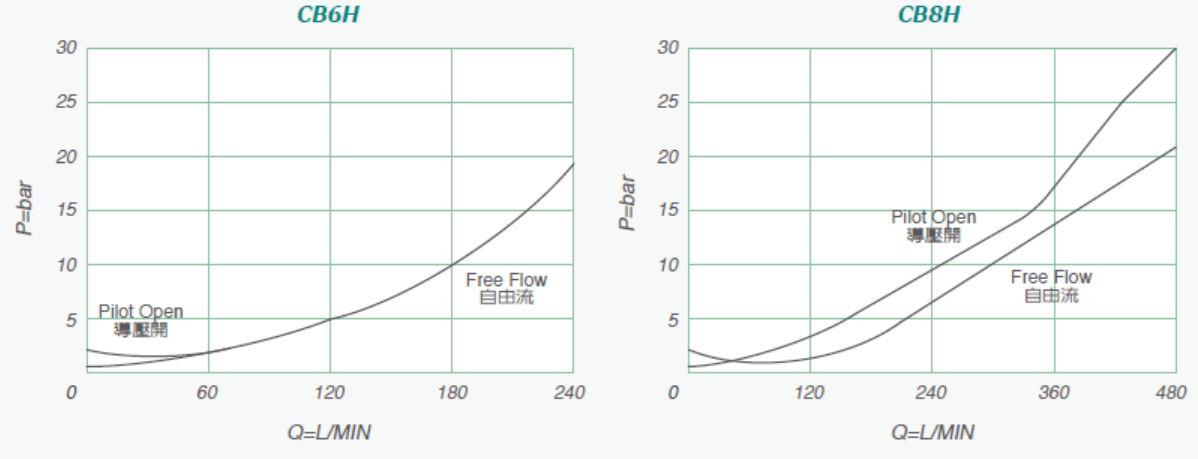

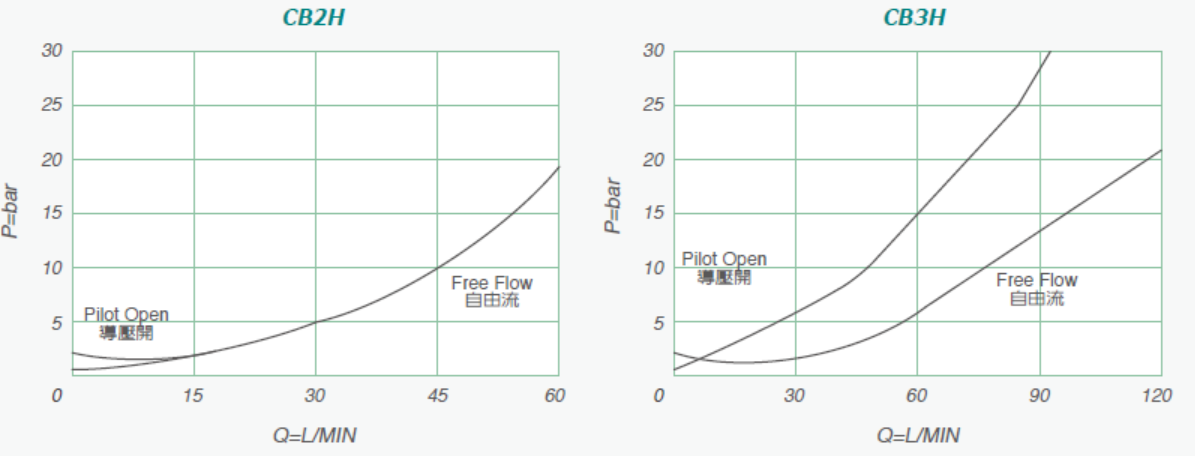

Typical Pressure Rise
| Dimension & Cavities Tooling |
|
| |
| |
|
|
|
